QY-U300
QY-U300 is a solution designed for industrial applications, support Intel 2-14th processors, supports 2* SATA SSD,1*PCIE 16x slot and 1*Mini PCIE slot, support 4G and WIFI module. The whole machine uses ATX power module power supply.
QY-U300 is compatible with mainstream operating systems and embedded operating systems such as Windows and Linux, and it can run application software and programs based on the above operating systems developed by customers.
PRODUCTS FEATURES
CPU:
2-14th-i3 / i5 / i7 / i9 Desktop CPU
RAM:
2*DDR III/IIII RAM Slots
Storage:
2*SATA SSD Slots
Interfaces:
2*LAN, 8*USB, 10*COM, 1*HDMI,1*VGA
Expansion Slot:
1*PCIE 16x slot,1*Mini PCIE slot, support 4G and WIFI module
Introduce
Features
Specification
Dimension
Introduce:

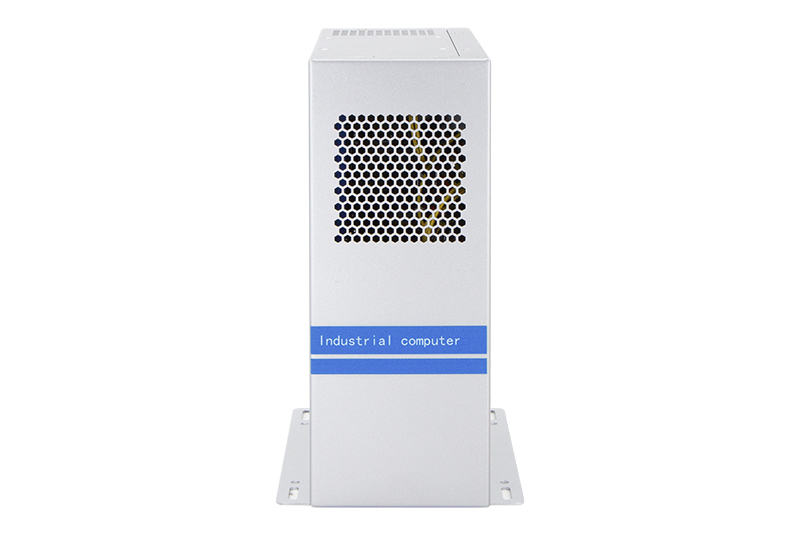

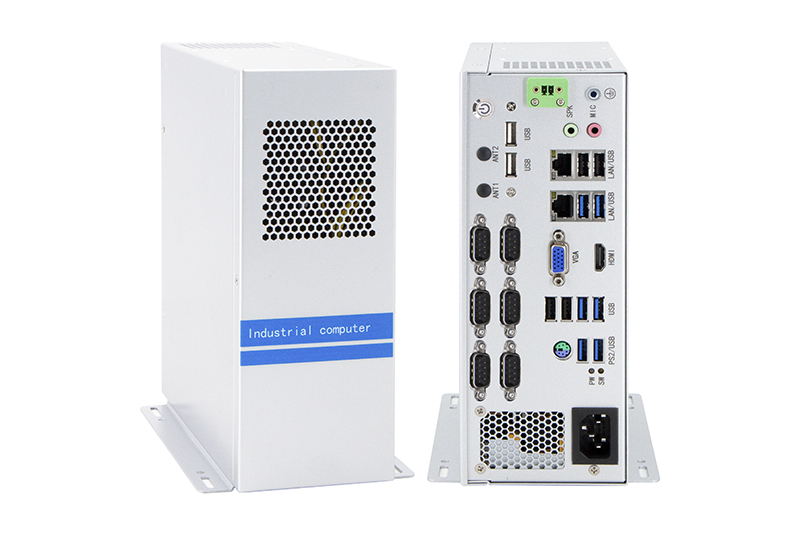

Industrial Computer QY-U300
1. Support 2-14th-i3 / i5 /i7 / i9 CPU
2. 2*RJ-45,8*USB
4. 2*SATA SSD slots
5. 1*PCIE 16x slot
1*Mini PCIE slot, support 4G and WIFI module
6. Support Windows and Linux system
2. 2*RJ-45,8*USB
1*RS-232 / 422 / 485 (DB9 type）
9*RS-232 (header)
3. 1*HDMI+1*VGA display ports4. 2*SATA SSD slots
5. 1*PCIE 16x slot
1*Mini PCIE slot, support 4G and WIFI module
6. Support Windows and Linux system
Features:
CPU
Support Intel Core 2-14th-i3 / i5 /i7 / i9 CPU
Fan Design
Aluminum alloy material design
High Capacity RAM and SSD
2*DDR III/IIII RAM Slots
2*SATA SSD Slots
Rich I/O interfaces
2*LAN, 8*USB,1*HDMI,1*VGA
1*RS-232 / 422 / 485 (DB9 type)+9*RS-232 (header)
Various optional modules
WIFI / 4G module
Power
1U ATX Power Module
-20℃ to 60℃ run temperature
24/7 uninterrupted and stable operation
Various installation methods
Desktop/Embedded
Specification:
1-1.H61 Mother Board Specification：
1-2.H110 Mother Board Specification：
1-3.H420 Mother Board Specification：
1-4.H610 Mother Board Specification：
2.Device Specification：
3.Ordering Information：
| Mother Board Model | QY-MB-H61-MITX |
| Chipset | Intel H61, Support Intel Core 2/3th-i3/i5/i7 / Pentium / Celeron desktop CPU, LGA 1155 |
| Memory | Support DDR3-1066 / 1333 MHz, 2*U-DIMM Slots, Up to 16GB |
| Storage | 2*SATA SSD Slots |
| Display | 1*HDMI: Resolution max up to 1920*1200@60Hz 1*VGA: Resolution max up to 1920*1200@60Hz |
| Expansion | 1*PCIE 16x slot 1*Mini PCIE slot, support 4G and WIFI module |
| Ethernet | 2*Realtek 1Gbps LAN Chip (10 / 100 / 1000 Mbps, RJ-45 Type) |
| USB | 8*USB 2.0 (Type-A) |
| COM | 1*RS-232 / 422 / 485 (DB9 type) 9*RS-232 (Header) |
| Audio | 1*Line-out+1*Line-in+MIC |
| LPT | 1*LPT Port |
1-2.H110 Mother Board Specification：
| Mother Board Model | QY-MB-H110-MITX |
| Chipset | Intel H110, Support Intel Core 6/7/8/9th-i3/i5/i7 / Pentium / Celeron desktop CPU, LGA 1151 |
| Memory | Support DDR4-2133 MHz, 2*non-ECC U-DIMM Slots, Up to 32GB |
| Storage | 1*MSATA SSD Slot 2*SATA SSD Slots |
| Display | 1*HDMI: Resolution max up to 4096*2160@24Hz 1*VGA: Resolution max up to 1920*1200@60Hz |
| Expansion | 1*PCIE 16x slot 1*Mini PCIE slot, support 4G and WIFI module |
| Ethernet | 2*Realtek GbE LAN Chip (10 / 100 / 1000 Mbps, RJ-45 Type) |
| USB | 2*USB 3.0 (Type-A) 8*USB 2.0 (Type-A) |
| COM | 6*RS-232 (Header) |
| Audio | 1*Line-out+1*MIC |
| Mother Board Model | QY-MB-H420-MITX |
| Chipset | Intel H420 Support Intel Core 10th-i3/i5/i7/i9 / Pentium / Celeron desktop CPU, LGA 1200 |
| Memory | Support DDR4-2400 MHz, 2*U-DIMM Slots, Up to 64GB |
| Storage | 1*M.2 SATA SSD Slot 1*SATA SSD Slot |
| Display | 1*VGA: Resolution max up to 1920*1200@60Hz 1*HDMI: Resolution max up tp 1920*1080@60Hz |
| Expansion | 1*PCIE 16x slot 1*M.2 Key-E slot, support WIFI module |
| Ethernet | 2*Realtek GbE LAN Chip (10 / 100 / 1000 Mbps, RJ-45 Type) |
| USB | 6*USB 3.0 (Type-A) 4*USB 2.0 (Type-A) 2*USB 2.0 (Header) |
| COM | Max 10*RS-232 (Header) |
| Audio | 1*Line-out+1*MIC |
| Mother Board Model | QY-MB-H610-MITX |
| Chipset | Intel H610, Support Intel Core 12/13/14th-i3/i5/i7/i9 / Pentium / Celeron desktop CPU, LGA 1700 |
| Memory | Support DDR4-3200 MHz, 2*U-DIMM Slots, Up to 32GB |
| Storage | 1*M.2 NVME SSD Slot 1*SATA SSD Slot |
| Display | 1*VGA: Resolution max up to 1920*1200@60Hz 1*HDMI: Resolution max up tp 4096*2160@30Hz |
| Expansion | 1*PCIE 16x slot 1*M.2 Key-E slot, Support WIFI module |
| Ethernet | 2*Realtek RTL8111H GbE LAN Chip (10 / 100 / 1000 /2500 Mbps, RJ-45 Type) |
| USB | 4*USB 3.2 (Type-A) 6*USB 2.0 (Type-A) 2*USB 2.0 (Header) |
| COM | Max 10*RS-232 (Header) |
| Audio | 1*Line-out1*MIC |
2.Device Specification：
| Power Input | 1U ATX Power Module (300w / 500w / 800w / 1000w / 1300w) |
| Support Auto-Start | |
| Working Temperature | -30℃~70℃, Support 24/7 Working |
| Structure | Fully Enclosed Aluminum Alloy Material |
| Heat Dissipation | Fan Design |
| Installation | Desktop / Embedded |
| Size | 90mm*201mm*233.5mm |
| System | Windows and Linux |
| Mother Board Type | Support Mini-ITX |
| Model | Chipset | CPU | LAN | USB | COM | RAM | Display | SSD | Expansion |
| QY-U300 | H61 | 2th/3th | 2 | 8*3.0 | 1*RS-232/485 9*RS-232 |
2*DDR 3 Up to 16GB |
1*HDMI 1*VGA |
2*SATA | 1*Mini PCIE 1*PCIE 16x |
| H110 | 6th/7th/8th/9th | 2*3.0 8*2.0 |
6*RS-232 | 2*DDR 4 Up to 32GB |
1*VGA 1*HDMI |
1*MSATA 2*SATA |
1*MIni PCIE 1*PCIE 16x |
||
| H420 | 10th | 6*3.0 6*2.0 |
10*RS-232 | 2*DDR 4 Up to 64GB |
1*VGA 1*HDMI |
1*M.2 SATA 1*SATA |
1*M.2 1*PCIE 16x |
||
| H610 | 12th/13th/14th | 4*3.2 8*2.0 |
10*RS-232 | 2*DDR 4 Up to 64GB |
1*HDMI 1*VGA |
1*M.2 PCIE 1*SATA |
1*M.2 1*PCIE 16x |

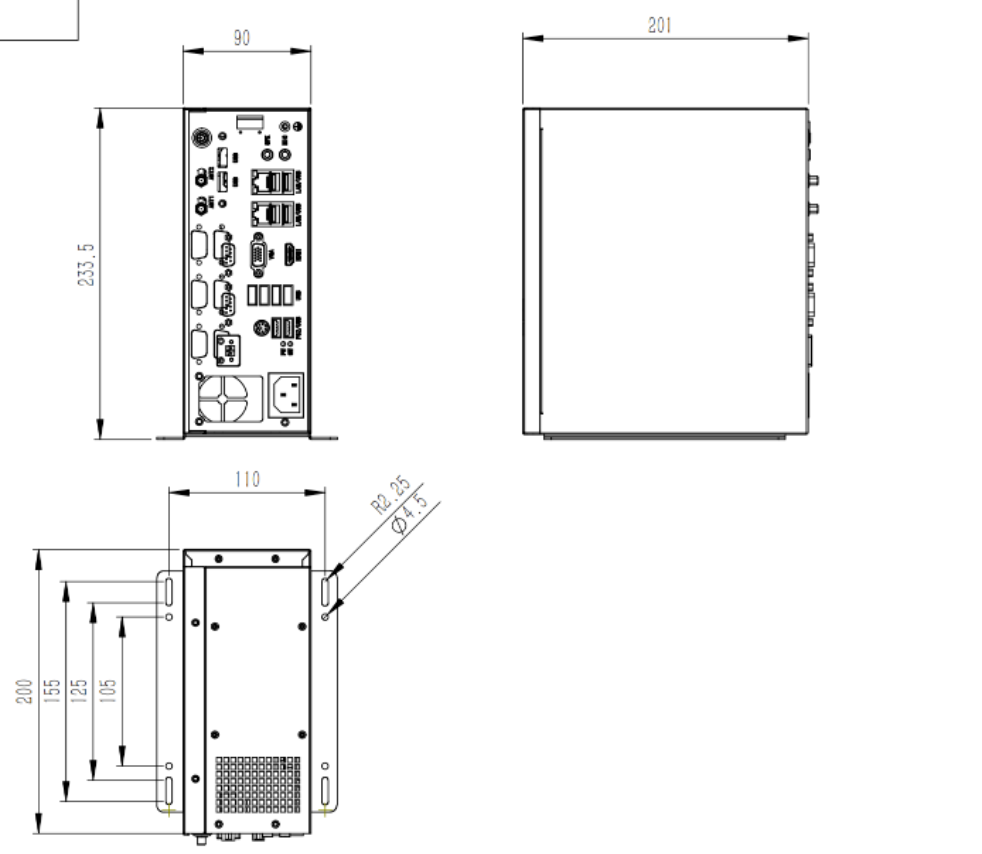

Dimension:
Application:
