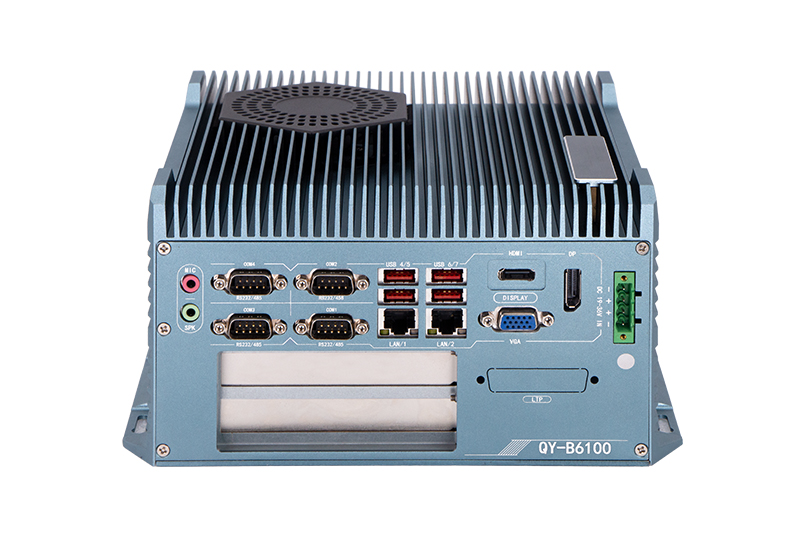

QY-B6100
QY-B6100 is a solution designed for industrial applications, using Intel processor, supports 2*DDR4 RAM slot,1*M.2 SATA SSD,1*MSATA SSD Slot，1*SATA slot, 1*M.2 PCIE SSD Slot and 1*M.2 expansion slot. The whole machine uses 9-36V DC power supply. It has 2*Gigabit Ethernet port, 6*COM, and 7*USB, 1*HDMI,1*DP, display ports and 2*expansion card slot.
QY-B6100 is compatible with mainstream operating systems and embedded operating systems such as Windows 10, Windows 11, Linux, etc., and can run application software and programs based on the above operating systems developed by customers.
PRODUCTS FEATURES
CPU:
12/13/14th-i3/i5/i7/i9 CPU
RAM:
2*DDR IIII RAM Slots
Storage:
1*M.2 SATA SSD, 1*MSATA SSD, 1*SATA SSD Slots
Interfaces:
2*LAN, 7*USB, 6*COM, 1*HDMI,2*DP
Expansion Slot:
1*Mini PCIE Slot+1*M.2 Slot, Support 4G/5G and WIFI module
Introduce
Features
Specification
Dimension
Introduce:

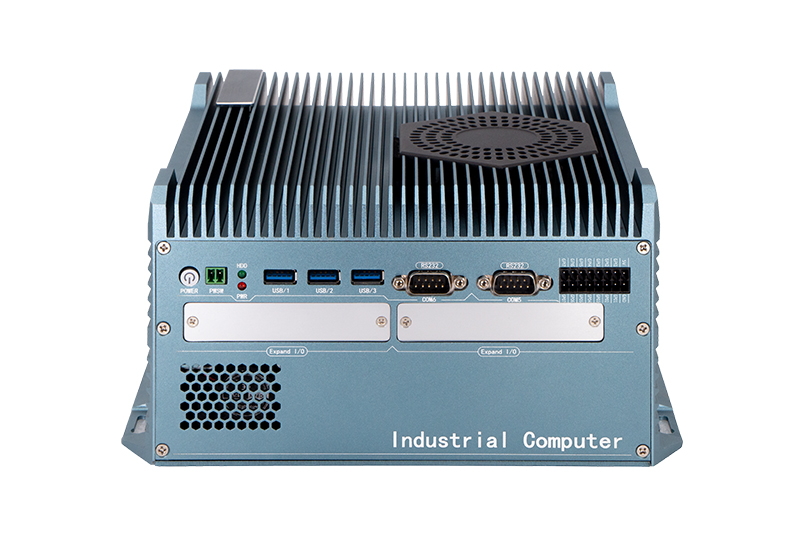

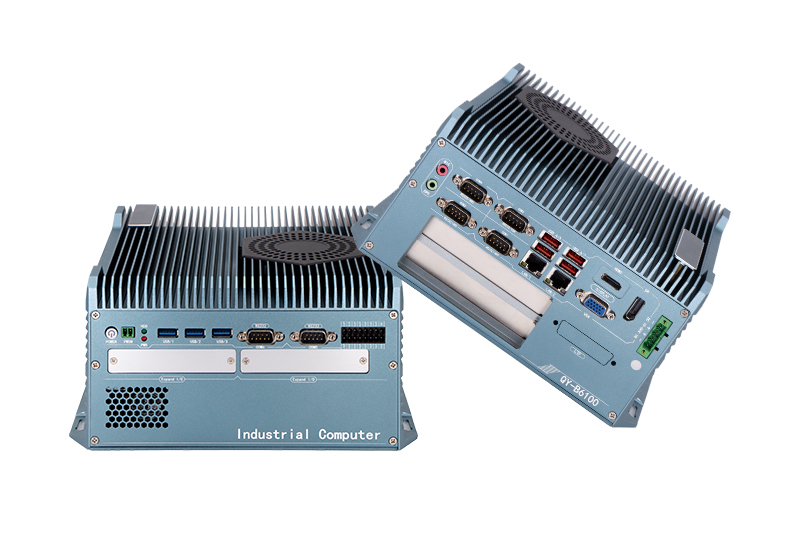

Industrial Mini PC QY-B6100
1. Support 12/13/14th-i3/i5/i7/i9 CPU
2. 2*RJ-45,7*USB
4. 1*M.2 SATA+1*SATA SSD slot+1*MSATA SSD Slot
5. 1*Mini PCIE Slot+1*M.2 Slot, Support 4G/5G and WIFI module
1*PCIE 16X+1*PCIE 1X or 2*PCI
6. Support Win 10 / 11 and Linux system
2. 2*RJ-45,7*USB
4*RS-232 / 422 / 485
2*RS-232 (DB9 Type)
3. 1*HDMI+2*DP display ports+2*RS-232 (DB9 Type)
4. 1*M.2 SATA+1*SATA SSD slot+1*MSATA SSD Slot
5. 1*Mini PCIE Slot+1*M.2 Slot, Support 4G/5G and WIFI module
1*PCIE 16X+1*PCIE 1X or 2*PCI
6. Support Win 10 / 11 and Linux system
Features:
CPU
Support 12/13/14th-i3/i5/i7/i9 CPU
Fan Design
Aluminum alloy material,
better heat dissipation effect
High Capacity RAM and SSD
2*DDR IIII RAM Slots
1*M.2 SATA
1*SATA SSD Slots
1*MSATA SSD Slot
Rich I/O interfaces
2*LAN, 7*USB,1*HDMI,2*DP
4*RS-232 / 422 / 485 (DB9 type),2*RS-232 (DB9 type)
Various optional modules
Support 4G/5G and WIFI Module,
Power
DC 19-36V
-20℃ to 60℃ run temperature
24/7 uninterrupted and stable operation
Various installation methods
Embedded
Specification:
1.Mother Board Specification
2.Device Specification：
3.Ordering Information：
| Model | QY-B6100 |
| Chipset | H670 |
| CPU | Celeron G Series / Pentium Gold Series Core 12 / 13 / 14th-i3 / i5 / i7 / i9 |
| Memory | 2*DDR IIII RAM Slots, Up to 64GB |
| Storage | 1*MSATA SSD Slot 1*M.2 PCIE SSD Slot 1*SATA SSD Slots |
| Display | 1*HDMI: Resolution up to 4096*2304@60Hz 1*DP: Resolution up to 4096*2304@60Hz 1*VGA: Resolution up to 1920*1200@60Hz |
| Expansion | 1*PCIE 16X+1*PCIE 1X or 2*PCI |
| Ethernet | 2*Intel i211V LAN Chip (10 / 100 / 1000 Mbps, RJ-45 Type) |
| USB | 4*USB 3.1+3*USB 3.0 (Type-A) |
| COM | 4*RS-232 / 422 / 485+2*RS-232 (DB9 Type) |
| Audio | 1*Line-In+1*Line-Out |
| GPIO | 14 ports GPIO (7*GPI+7*GPO, Phoenix terminal type) |
| Daughter Card | 2*Daughter Card Slots，Support expansion I/O interfaces and funcational slots |
2.Device Specification：
| Watch Dog | Support |
| Power Input | DC 9-36V With Overvoltage Protection |
| Support Auto-Start | |
| 4 Pin Phoenix Terminal Type DC Plug | |
| Working Temperature | -30℃~70℃, Support 24/7 Working |
| Structure | Fully Enclosed Aluminum Alloy Material |
| Heat Dissipation | Fan Design (Fanless design chassis, optional) |
| Installation | Desktop / Embedded / Wall Mount |
| Size | 236mm*220mm*118mm |
| Power Consumption | Max to 240W |
| System | Windows and Linux |
3.Ordering Information：
| Model | Chipset | LAN | USB | COM | Display | RAM | SSD | Expansion | Power |
| QY-B6100 | H670 | 2 | 7 | 4*RS-232/422/485 2*RS-232 |
1*HDMI 1*DP 1*VGA |
2*DDR 4 | 1*M.2 NVME 1*MSATA 2*SATA |
1*Mini PCIE 1*M.2 PCIE or PCI |
DC 9-36V |
Dimension:
