QY-F5133-OF
QY-F5000 series Industrial Open Frame Monitor provides a variety of sizes from 10.1 to 23.8 inches, supports 4:3 and 16:9 ratio screens, and meets the needs of different industries and applications. It adopts industrial-grade capacitive and resistive touch modules to provide a smooth touch experience. The all-aluminum mold middle frame and front panel IP65 design ensure the firmness and durability of the product and can withstand the invasion of harsh environments. In terms of installation, it supports embedded, wall-mounted and VESA installation methods, which facilitates users to make a variety of installation options. DC power supply ensures low power consumption and stability of the product.
PRODUCTS FEATURES
Touch Type:
Capacitive/Resistive
Resolution:
1920*1080
Display Ports:
HDMI+VGA/VGA+DVI
Touch Ports:
USB or RS-232 touch port
Power Input:
DC 12V, DC 9-36V optional
Introduce
Features
Specification
Dimension
Introduce:

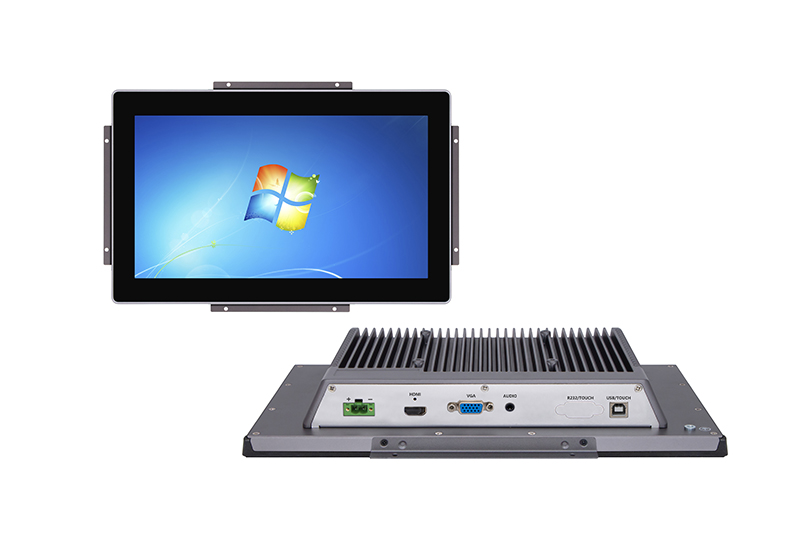

13.3 inch Open Frame Industrial Monitor
1. Support VGA/DVI/HDMI multiple display interfaces, optional resistive/capacitive touch screen
2. Support COM and USB touch interfaces
4. Ultra-thin design, saves cabinet space, resistant to shock and vibration
5. Solid power terminal, DC 12V input, meets industrial field applications
6. Support embedded wall-mounted and VESA installation, users can flexibly choose the installation method
7. -20℃~60℃ working temperature can keep 24/7 work stably
2. Support COM and USB touch interfaces
4. Ultra-thin design, saves cabinet space, resistant to shock and vibration
5. Solid power terminal, DC 12V input, meets industrial field applications
6. Support embedded wall-mounted and VESA installation, users can flexibly choose the installation method
7. -20℃~60℃ working temperature can keep 24/7 work stably

Features:

Screen Size
13.3 inch TFT LED,16:9 screen

Resolution
1920*1080

Display Ports
HDMI+VGA
VGA+DVI

Touch Type
Capacitive touch
Resistive touch

Power Input
DC 12V, DC 9-36V optional

Installation
Embedded/Wall-Mounted/VESA installation

Brightness
Standard 350nits, 500/1000nits optional

Operating temperature
-20℃~60℃, Support 24/7 Working
Specification:
Model | QY-F5133-OF | |
Display Port | HDMI+VGA | |
DVI+VGA | ||
Touch Port | USB (DB9 Type. Default) | |
RS-232 (DB9 Type) | ||
Screen Size | 13.3 inch TFT LED Screen, 16:9 Size | |
Resolution | 1920*1080 | |
Brightness | 350 nits | |
Support optional 500 / 700 nits | ||
Largest Colorful | 16M | |
Touch Screen Type | Capacitive | Resistive |
Light Transmittance | More than 95% | More than 95% |
Touch Life | 50 million times | 35 million times |
Response Time | <5ms | <5ms |
Touch Hardness | 6 Mohs | |
Menu | None |
2.Device Specification:
Power Input | DC 12V (Support Optional DC 9-36V Wide Voltage Power Module) |
Support Auto-Start | |
2 Pin Phoenix Terminal Type DC Plug | |
Working Temperature | -20℃~60℃, Support 24/7 Working |
Structure | Fully Enclosed Aluminum Alloy Material |
Heat Dissipation | Fanless Design, Conduction Heat Dissipation |
Installation | Desktop / Embedded / Wall Mount |
Size | 347.5mm*219.5mm*54.5mm |
Protection | Front Panel IP65 Water Proof |
3.Ordering Information:
Model | Display | Touch Port | Touch Screen Type | Power |
QY-F5133-OF | HDMI+VGA | USB | Capacitive Resistive |
DC 12V |
RS-232 | ||||
DVI+VGA | USB | |||
RS-232 |
Dimension:
Application:
