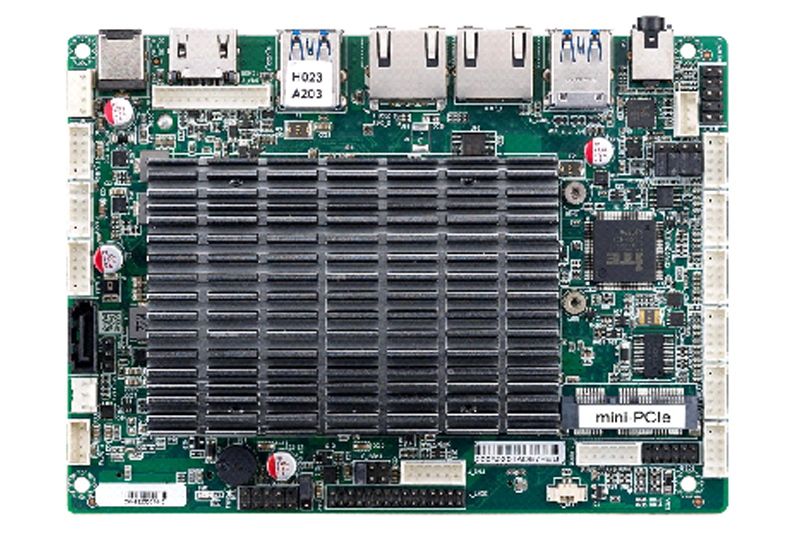

QY-MB-J6412-3.5 inch
A highly integrated small-size motherboard designed with a 3.5-inch (146*105mm) specification.
PRODUCTS FEATURES
CPU:
Intel Celeron J6412
RAM:
1*DDR IIII RAM Slot
Storage:
1*mSATA,1*SATA 3.0 7 P Connector
Interfaces:
2*LAN, 10*USB, 6*COM, 1*VGA,1*HDMI
Expansion Slot:
1*Mini-PCIe slot(1 * WIFI/4G, 1 * mSATA)
Introduce
Features
Specification
Marking Instruction
Introduce:
QY-MB-J6412-3.5 inch
1. Intel Celeron J6412 CPU
2. 2*RJ-45,10*USB
4*RS-232(Header)+2*RS-232/RS485(Header)
3. 1*VGA display ports
4. 1*mSATA+1*SATA 3.0 7P Connector+1 * M.2 (NVMe SSD/5G)
5. 1 * Mini-PCIe (WIFI supported with mSATA/4G selectable)
6. Windows 10/ 11, Linux
2. 2*RJ-45,10*USB
4*RS-232(Header)+2*RS-232/RS485(Header)
3. 1*VGA display ports
4. 1*mSATA+1*SATA 3.0 7P Connector+1 * M.2 (NVMe SSD/5G)
5. 1 * Mini-PCIe (WIFI supported with mSATA/4G selectable)
6. Windows 10/ 11, Linux
Features:
CPU
Intel Celeron J6412
RAM
Support 1*DDR IIII RAM Slot, Up to 32G
Storage
1*SATA
1*MSATA
Rich I/O interfaces
2*RJ-45,10*USB
4 * RS232 (Header)+2* RS232/RS485(Header)
Display Ports
1*VGA
1 * GPIO Header
1 * CMOS Clear Jumper
Various optional modules
WIFI / 4G module
Temperature
Storage: -20℃ ~ 75℃
Operating：-15℃ ~ 60℃
Power input
DC 12V
Specification:
| Model | QY-MB-J6412-3.5 inch |
| CPU | Intel Celeron J6412, Base Frequency 2.0G, Quad-core, TDP 10W |
| Display | Support triple display simultaneously： 1 * VGA: max resolution up to 1920 * 1200@60Hz 1 * HDMI: resolution up to 4096 * 2160@24Hz 1 * LVDS/eDP: LVDS, resolution up to 1920 * 1200@60Hz eDP, resolution up to 1920 * 1200@60Hz |
| Memory | DDR4-3200, 1 * SO-DIMM slot, up to 32GB |
| Storage | 1 * mSATA 1 * SATA3.0 7P Connector 1 * M.2 (NVMe SSD/5G)[1] |
| Expansion | 1 * Mini-PCIe (WIFI supported with mSATA/4G selectable) 1 * M.2 (NVMe SSD/5G)[1] |
| Ethernet | 2 * Intel 2.5Gbps PCIe Ethernet Controller, RJ45 |
| USB | 4 * USB3.0 (Rear I/O, TYPE-A) 6 * USB2.0 (Internal, Header) |
| COM | 4 * RS232 (Header) 2* RS232/RS485(Header) |
| Audio | Realtek HDA Codec, with MIC / Line-out and Amplifier 1*Front Audio Header (Line-out+MIC) 1 * Line-Out/MIC 2 in1 Phone Jack |
| Other Ports | 1 * VGA Header 1 * Micro SIM Card Slot 1 * SYS FAN Header 1 * Front Panel Header 1 * Keyboard&Mouse Header 1 * GPIO Header 1 * CMOS Clear Jumper 1 * DC Output Header 1 * Battery Header |
| System | Windows 10/ 11, Linux |
| Temperature | Storage: -20℃ ~ 75℃ Operating：-15℃ ~ 60℃ |
| Power Input | DC 12V 1 * Power Input Connector |
Marking Instruction:
Connector&Header
| 1 | Front Audio Pin Header |
| 2 | Amplifier Pin Header |
| 3 | COM1 Pin Header |
| 4 | COM5/6 RS232/RS485 Signal Select Jumper |
| 5 | COM2/3/4/5/6 Pin Headers |
| 6 | GPIO Pin Header |
| 7 | Keyboard&Mouse Pin Header |
| 8 | Battery Header |
| 9 | LVDS Backlight Control Pin Header |
| 10 | LVDS Signal Pin Header |
| 11 | LVDS VDD Select Jumper |
| 12 | CMOS Clear Jumper |
| 13 | Front Panel Pin Header |
| 14 | SATA Power Pin Header |
| 15 | System Fan Header |
| 16 | VRM Power PROGRAM I/F Header |
| 17 | Front USB Pin Headers |
| 18 | VGA Pin Header |
| 19 | DC12V/5V Power Output Header |
| 20 | Mini PCI-E1 Slot ( WIFI/mSATA/4G) |
| 21 | SATA 3.0 Connector |
| 22 | SIM Card Pin Header |
| 23 | SIM Card Slot |
| 24 | M.2 Connector(NVMe SSD/5G) |
| 25 | DDR4 SO-DIMM Slot |
| 26 | Mic-in/Line-out Connector |
| 27 | USB3.0 Connectors |
| 28 | LAN Connectors |
| 29 | USB3.0 Connectors |
| 30 | HDMI Connector |
| 31 | DC12V Power Input Connector |
