QY-MB-1155G7-3.5 inch

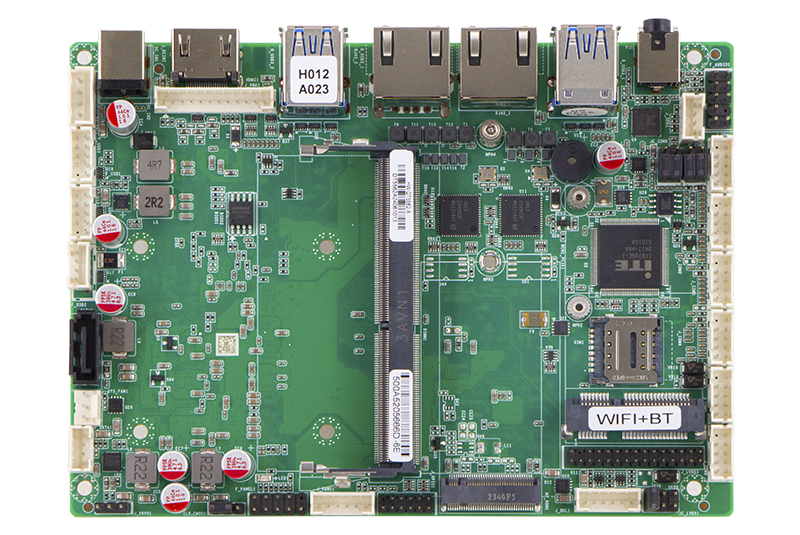

A highly integrated small-size motherboard designed with a 3.5-inch (146*105mm) specification.
PRODUCTS FEATURES
CPU:
Intel Core i5-1155G7
RAM:
1*DDR IIII RAM Slot
Storage:
1*mSATA,1 * M.2
Interfaces:
2*LAN, 10*USB, 6*COM, 1*VGA
Expansion Slot:
1 * Mini-PCIe (WIFI/BT/4G)
Introduce
Features
Specification
Marking Instruction
Introduce:
QY-MB-1155G7-3.5 inch
1. Intel Core i5-1155G7
2. 2*RJ-45,10*USB
4 * RS232+2* RS232/RS485
3. 1*VGA display ports
4. 1 * SATA3.0 7P Connector +1 * M.2 (SATA SSD/NVMe SSD/5G)
5. 1 * Mini-PCIe (WIFI/BT/4G)
6. Windows 10/ 11, Linux
2. 2*RJ-45,10*USB
4 * RS232+2* RS232/RS485
3. 1*VGA display ports
4. 1 * SATA3.0 7P Connector +1 * M.2 (SATA SSD/NVMe SSD/5G)
5. 1 * Mini-PCIe (WIFI/BT/4G)
6. Windows 10/ 11, Linux
Features:
CPU
Intel Core i5-1155G7
RAM
Support 1*DDR IIII RAM Slot, Up to 64G
Storage
1*SATA
1 * M.2
Rich I/O interfaces
2*RJ-45,10*USB
4 * RS232+2* RS232/RS485
Display Ports
1*VGA
1 * HDMI
Various optional modules
WIFI / 4G module
Temperature
Storage: -20℃ ~ 75℃
Operating：-15℃ ~ 60℃
Power input
DC 12V
Specification:
| Model | QY-MB-1155G7-3.5 inch | |
| CPU | Intel Core i5-1155G7, up to 4.50G, quad-core | |
| Display | 1 * HDMI; 1 * LVDS/eDP; 1 * VGA | 1 * HDMI; 1 * eDP; 1 * VGA |
| 1 * HDMI: resolution up to 4096 * 2160@24Hz 1 * LVDS/eDP: LVDS, resolution up to 1920 * 1200@60Hz eDP, resolution up to 1920 * 1200@60Hz 1 * VGA: max resolution up to 1920 * 1200@60Hz |
||
| Memory | DDR4-3200, 1 * SO-DIMM slot, up to 64GB | |
| Storage | 1 * SATA3.0 7P Connector 1 * M.2 (SATA SSD/NVMe SSD/5G) |
|
| Expansion | 1 * M.2(SATA SSD/NVMe SSD/5G) 1 * Mini-PCIe (WIFI/BT/4G) |
|
| Ethernet | 1 * 1Gbps+1 * 2.5Gbps Intel PCIe Ethernet Controller(i219+i226), RJ45 | |
| USB | 4 * USB3.0 (Rear I/O, TYPE-A) 6 * USB2.0 (Internal, Header) |
|
| COM | 4 * RS232+2* RS232/RS485 | |
| Audio | Realtek HDA Codec, with MIC / Line-out and Amplifier 1*Front Audio Header (Line-Out + MIC) 1 * Line-Out/MIC 2 in1 Phone Jack |
|
| Other Ports | 1 * VGA Header 1 * Micro SIM Card Slot 1 * System FAN Header 1 * Front Panel Header 1 * GPIO Header 1 * CMOS Clear Jumper 1 * Keyboard&Mouse Header |
|
| System | Windows 10/ 11, Linux | |
| Temperature | Storage: -20℃ ~ 75℃ Operating：-15℃ ~ 60℃ |
|
| Power Input | DC 12V | |
Marking Instruction:

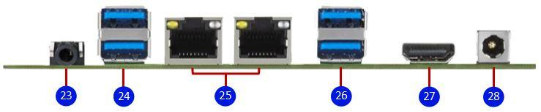

Connector&Header
| 1 | Front Audio Pin Header |
| 2 | Amplifier Pin Header |
| 3 | COM1/2/3/4/5/6 Pin Headers |
| 4 | LVDS Signal Pin Header |
| 5 | LVDS VDD Select Jumper |
| 6 | LVDS Backlight Control Pin Header |
| 7 | GPIO Pin Header |
| 8 | Keyboard&Mouse Pin Header |
| 9 | Front Panel Pin Header |
| 10 | CMOS Clear Jumper |
| 11 | VRM Power PROGRAM I/F |
| 12 | SATA Power Pin Header |
| 13 | System FAN Header |
| 14 | Front USB Pin Headers |
| 15 | DC12V/5VPowerOutput Header |
| 16 | VGA Pin Header |
| 17 | COM5/6 RS232/RS485 Select Jumpers |
| 18 | Mini PCI-E1 Slot(WIFI/4G/BT) |
| 19 | SIM Card Slot |
| 20 | M.2 Slot(SATA SSD/NVMe SSD/5G) |
| 21 | DDR4 SO-DIMM Slot |
| 22 | SATA 3.0 Connector |
| 23 | Mic/Line-out Connector |
| 24 | USB3.0 Connectors |
| 25 | LAN Connectors |
| 26 | USB3.0 Connectors |
| 27 | HDMI Connector |
| 28 | DC12V Power Input Connector |
