Mini-itx Motherboard Products
| Products | Model Name | Display | CPU | I/O | Expansion |
|
QY-MB-J1900-MITX
|
1*HDMI 1*VGA |
Intel Celeron J1900 |
Ethernet: 2*LAN USB: 7*USB COM: 5*RS-232(Header) + 1*RS-232/485 (Header) Display: 1*HDMI+1*VGA Audio: 1*Line-In/MIC Jack Power input: DC 12V |
1*Mini PCIe slot,support WIFI or 4G |
|

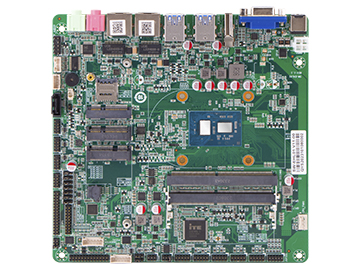

QY-MB-J6412-MITX
|
1*HDMI 1*VGA |
Intel Celeron J6412 |
Ethernet: 2*LAN USB: 9*USB COM: 5*RS-232(Header) + 1*RS-232/485 (Header) Display: 1*HDMI+1*VGA Audio: 1*Line-Out/MIC Jack Power input: DC 12V |
2*Mini PCIe slots,support WIFI and 4G |
|
QY-MB-4010U-MITX
|
1*HDMI 1*VGA |
Intel Core i3-4010U i5-4260U i7-4650U |
Ethernet: 2*LAN USB: 8*USB COM: 5*RS-232(Header) + 1*RS-232/485 (Header) Display: 1*HDMI+1*VGA Audio: 1*Line-In/MIC Jack Power input: DC 12V |
2*Mini PCIe slots,support WIFI and 4G |
|
QY-MB-7100U-MITX
|
1*HDMI 1*VGA |
Intel Core i3-7100U i5-6200U/7200U i7-7500U |
Ethernet: 2*LAN USB: 8*USB COM: 5*RS-232(Header) + 1*RS-232/485 (Header) Display: 1*HDMI+1*VGA Audio: 1*Line-Out/MIC In Power input: DC 12V |
1* Mini-PCIe Slot ( Wifi supported with 4G/BT selectable) 1 * M.2 PCIe Slot( 5G supported) |
|
QY-MB-8130U-MITX
|
1*HDMI 1*VGA |
Intel Core i3-8130U i5-8250U/8260U i7-8550U |
Ethernet: 2*LAN USB: 8*USB COM: 5*RS-232(Header) + 1*RS-232/485 (Header) Display: 1*HDMI+1*VGA Audio: 1*Line-Out/MIC-In Power input: DC 12V |
1*Mini-PCIe slot( Wifi supported with 4G/BT selectable) 1*M.2 PCIe slot (5G supported) |
|
QY-MB-10110U-MITX
|
1*HDMI 1*VGA |
Intel Core i3-10110U i5-10210U/10310U i7-10610U/10710U |
Ethernet: 2*LAN USB: 8*USB COM: 5*RS-232(Header) + 1*RS-232/485 (Header) Display: 1*HDMI+1*VGA Audio: 1*Line-Out/MIC Jack Power input: DC 12V |
1 * Mini-PCIe slot( Wifi supported with 4G/BT selectable) 1 * M.2 PCIe slot( 5G supported) |
|
QY-MB-1135G7-2H-MITX
|
2*HDMI 1*VGA |
Intel Core i3-1115G4 i5-1135G7/1155G7 i7-1165G7/1195G7 |
Ethernet: 2*LAN USB: 10*USB COM: 3*RS-232(Header) + 2*RS-232/485 (Header)+1*RS-232(Connector) Display: 2*HDMI+1*VGA Audio: 1*Line-Out/MIC Jack Power input: DC 12V |
2*Mini PCIe slots,support WIFI and 4G 1*M.2 NVME SSD support 5G |
|
QY-MB-1235U-MITX
|
1*HDMI 1*VGA |
Intel Core i3-1215U/1315U i5-1235U/1335U i7-1255U/1355U |
Ethernet: 1*Onboard Intel i219-V+ i210AT Gigabit LAN (Single/Dual Ethernet optional) USB:2*USB3.2 Gen1, 2*USB3.2 Gen2(optional 1*type-C), 7*USB 2.0 COM: 5*RS-232(Header)+1*RS-232/485 (Header) Display: 1*HDMI+1*VGA Audio: 1*Line-Out+MIC Jack Power input: DC 12V |
1 x M.2 E Key slot (WIFI6 CNVi/Bluetooth) 1 x M.2 B Key slot (4G/5G optional) |
|
QY-MB-1235U-2H-MITX
|
2*HDMI 1*VGA |
Intel Core i3-1215U/1315U i5-1235U/1335U i7-1255U/1355U |
Ethernet: 2*LAN USB: 4*USB 3.0,6*USB 2.0 COM: 4*RS-232(Header) + 2*RS-232/485 (Header) Display: 2*HDMI+1*VGA Audio: 1*Line-out+MIC Jack Power input: DC 12V |
2*Mini PCIe slots,support WIFI and 4G 1*M.2 NVME SSD |
|

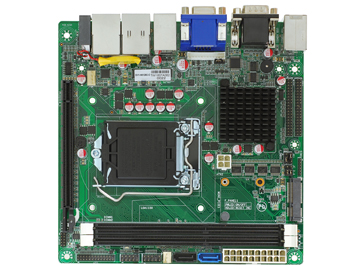

QY-MB-H81-MITX
|
1*HDMI 1*VGA |
Chipset:H81 CPU:i3/i5/i7-4th Pentium,Celeron |
Ethernet: 2*LAN USB: 2*USB 3.0,8*USB 2.0 COM: 6*RS-232(Header) Display: 1*HDMI+1*VGA Audio: 1*Line-Out/MIC Power input: DC 12V |
1*Mini PCIe slot support WIFI |
|
QY-MB-H110-MITX
|
1*HDMI 1*VGA |
Chipset:H110 CPU:i3/i5/i7 6-9th Pentium,Celeron |
Ethernet: 2*LAN USB: 8*USB 2.0,2*USB 3.0 COM: 6*RS-232 Display: 1*HDMI+1*VGA Audio: 1*Line-out/MIC Jack |
1*Mini PCIe slot support WIFI |
|
QY-MB-H310-MITX
|
1*HDMI 1*VGA |
Chipset:H310 CPU:i3/i5/i7-8/9th Pentium,Celeron |
Ethernet: 2*LAN USB: 4*USB 3.1,6*USB 2.0,2*USB 2.0(Header) COM: 2 * RS232 (COM1-2, Header) 8 * RS232 (COM3-10, Header) Display: 1*HDMI+1*VGA Audio: 1*Line-Out/MIC Jack Power input: DC 12V |
1*Mini PCIe slot,support WIFI with 4G 1*PCIE 16x |
|
QY-MB-H310C-MITX
|
1*HDMI 1*VGA |
Chipset:H310C Intel Core i3-6100/7100/8100/9100 i5-6500/7500/8500/9500 i7-6700/7700/8700/9700 Pentium,Celeron Desktop CPU |
Ethernet: 2*LAN USB: 10*USB COM: 6*RS-232 Display: 1*HDMI+1*VGA Audio: 1*Line-Out/MIC Jack Power input: DC 12V |
2*Mini PCIe slots,support WIFI and 4G |
|
QY-MB-H420E-MITX
|
1*HDMI 1*VGA |
Chipset:H420E CPU:Intel Core i3/i5/i7/i9-10th Pentium,Celeron |
Ethernet: 2*LAN USB: 6*USB 2.0, 4*USB 3.0,2*USB 2.0(Header) COM: 10*RS-232(Header) Display: 1*HDMI+1*VGA Audio: 1 * Line-Out + MIC 3.5mm Jack (Line-In Optional) |
1*PCIE 16X Slot 1*M.2 Slot,support WIFI+Bluetooth |
|
QY-MB-H610-MITX
|
1*HDMI 1*VGA |
Chipset:H610 CPU:Intel Core i3/i5/i7/i9-12/13/14th Pentium, Celeron |
Ethernet: 2*LAN USB: 4*USB 3.2, 8*USB 2.0 COM: 10*RS-232 Display: 1*HDMI+1*VGA Audio: 1*Line-out+1*MIC |
1*PCIE 16x Slot 1*M.2 PCIE Slot+USB 2.0,Support WIFI with Bluetooth |
Not seeing the option you’re looking for? Have our sourcing experts assist you!
