QY-MB-J6412-MITX

QY-MB-J6412-MITX motherboard is a compact and efficient embedded motherboard designed for industrial and low-power applications. It features an Celeron J16412 processor,offering reliable performance with a low TDP. It has 2*Gigabit Ethernet port, 6*COM, and 9*USB, 1*HDMI, 1*VGA display ports. QY-MB-J6412-MITX motherboard is widely used in industrial control, network storage, and embedded systems due to its robust design, low power consumption, and versatile connectivity options. It supports operating systems such as Windows 10/11 and Linux, making it adaptable to various applications.

PRODUCTS FEATURES

CPU: Intel Celeron J6412

RAM: 2*DDR IIII RAM Slots,Up to 32G

Storage: 1*MSATA,1*SATA

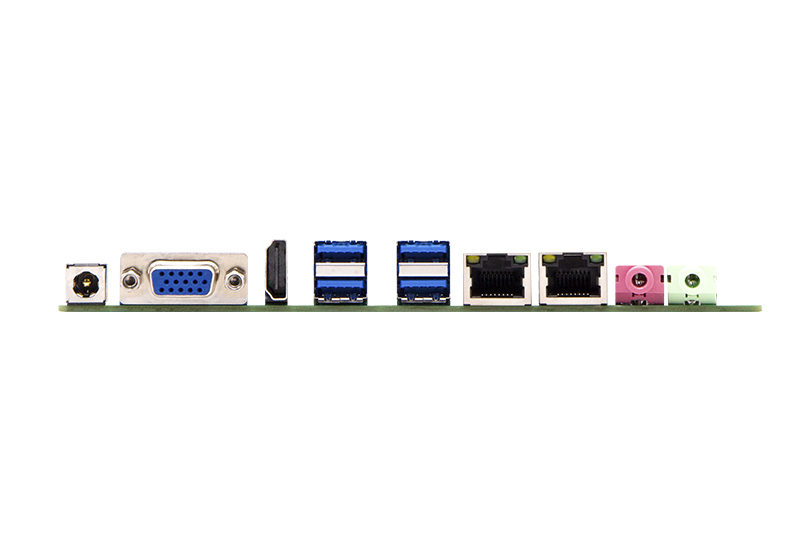

Interfaces: 2*LAN, 9*USB, 6*COM, 1*HDMI,1*VGA

Expansion Slot: 2*Mini PCIe slots,support WIFI and 4G

Send Email Download PDF

Introduce

Features

Specification

Marking Instruction

Introduce:

QY-MB-J6412-MITX

1. Intel Celeron J6412 CPU
2. 2*RJ-45,4*USB 3.0, 5*USB 2.0(Header)
1*RS-232/485+5*RS-232 (Header)
3. 1*HDMI+1*VGA display ports
4. 1*MSATA+1*SATA SSD
5. 2*Mini PCIe slots,support WIFI and 4G
6. Support Windows 10/11 and Linux system

Features:

CPU

Intel Celeron J6412

RAM

Support 2*DDR IIII RAM Slots, Up to 32G

Storage

1*SATA 1*MSATA

Rich I/O interfaces

2*RJ-45,9*USB 1*RS-232/485+5*RS-232 (Header)

Display Ports

1*HDMI+1*VGA

Various optional modules

WIFI and 4G

Working Temperature

-20℃ ~ 60℃

Power input

DC 12V

Specification:

Model	QY-MB-J6412-MITX
CPU	Intel Celeron J6412 4 core, 4 total threads, 2.00 GHz to 2.60GHz, 1.5 MB L2 cache
Display	Support dual display simultaneously: 1HDMI: resolution up to 38402160@60Hz 1VGA: resolution up to 19201080@60Hz 1LVDS: resolution up to 19201080@60Hz 1eDP: resolution up to 19201080@60Hz
Memory	DDR 4L-1333,2*SO-DIMM,up to 32GB Note: Due to the limitation of Windows 32-bit operating system, if more than 4 GB of memory is installed, it is actually.The memory capacity displayed on will be less than 4 GB
Storage	1SATA 3.0 7P connector 1MSATA
Expansion	2*Mini-PCIE slot,support WIFI and GSM
Ethernet	2*Realtek 1Gbps PCIE Ethernet controller, RJ-45 type
USB	4USB 3.0 (Rear I/O,Type-A) 5USB 2.0 (Internal,header type)
COM	5RS-232, header type 1RS-485 / 232, header type
Audio	Realtek HDA codec with MIC / Line-out and Amplifier 1front Audio header (Line-out+MIC） 1Line-out / MIC Jack 1*SPK
Other Ports	1LPT header 1Micro SIM card slot 1CPU Fan header 1front panel header 1GPIO header 1COMS clear jumper
System	Windows 10 / 11, Linux
Temperature	Storage: -30℃ ~ 70℃ Operating：-20℃ ~ 60℃
Power Input	DC 12V

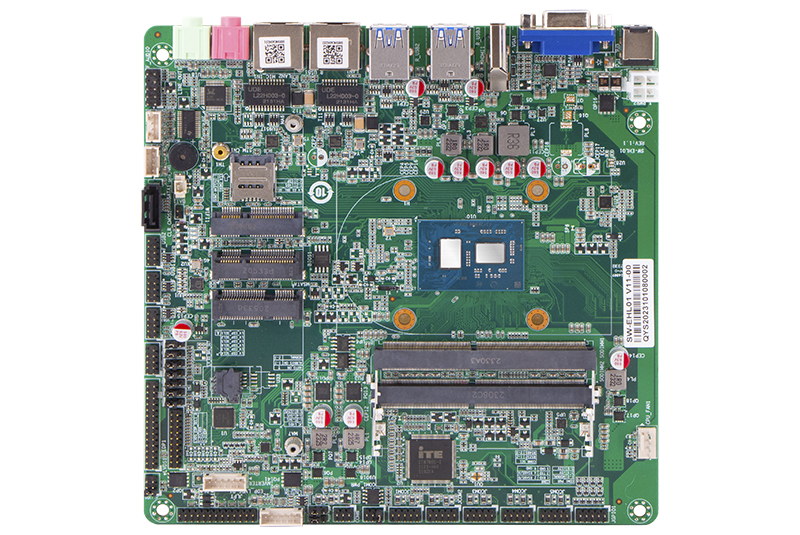

Marking Instruction:

1	DC 12V power input connector	23	Paraller port pin header
2	VGA connector	24	eDP signal pin header
3	HDMI connector	25	eDP / LVDS backlight control pin header
4	USB 3.0 connector	26	LVDS signal pin header
5	USB 3.0 connector	27	eDP / LVDS VDD select jumper
6	LAN connector	28	GPIO pin header
7	LAN connector	29	SATA 3.0 connector
8	Mic-in connector	30	SATA power pin header
9	Line-out connector	31	USB pin header
10	Front Audio pin header	32	USB pin header
11	Amplifier pin header	33	Front panel pin header
12	COM-1 pin header	34	Auto-on pin header
13	COM-2 pin header	35	DC-12V power input header
14	SIM card slot	36	CMOS battery holder
15	COM-3 pin header	37	CPU fan header
16	Mini-PCIE connector	38	DDR IIII SO-DIMM slot
17	COM-4 pin header	39	Buzzer
18	Mini-PCIE connector	40	COM-6 RS-485 / 232 signal select jumper
19	COM-5 pin header	41	eDP / LVDS signal select jumper
20	COM-1 PWR select jumper	42	PS/2 header
21	MSATA connector	43	USB pin header
22	COM-6 pin header	44	COMS clear jumper
