P8104-DC
QY-P8000-DC series Industrial Panel PC is an industrial all-in-one machine with powerful functions, strong scalability and excellent performance. Provides multiple size options from 10.4 inches to 32 inches, supports 4:3 and 16:9 displays, and meets the needs of different industries and applications.
It uses highperformance Intel desktop processors, supports Celeron and Core i3/i5/i7/i9 6-9th desktop processors, and has efficient processing capabilities to meet users' pursuit of performance. In addition, the P8000-DC series supports a variety of external expansion modules, such as UPS/COM/LAN wireless expansion, to meet users' different expansion needs. In terms of installation methods, it supports embedded and VESA installation methods, allowing users to make multiple installation options.
PRODUCTS FEATURES
Chipset:
B365
CPU:
Celeron,i3/i5/i7/i9-6/7/8/9th Desktop CPU
RAM:
2*DDR 4 RAM slots, Up to 64G
SSD:
1*M.2 NVME
Expansion Slot:
1*Mini PCIe slot, support 4G and WIFI module,1*Expansion Card slot
Introduce
Features
Specification
Dimension
Introduce:

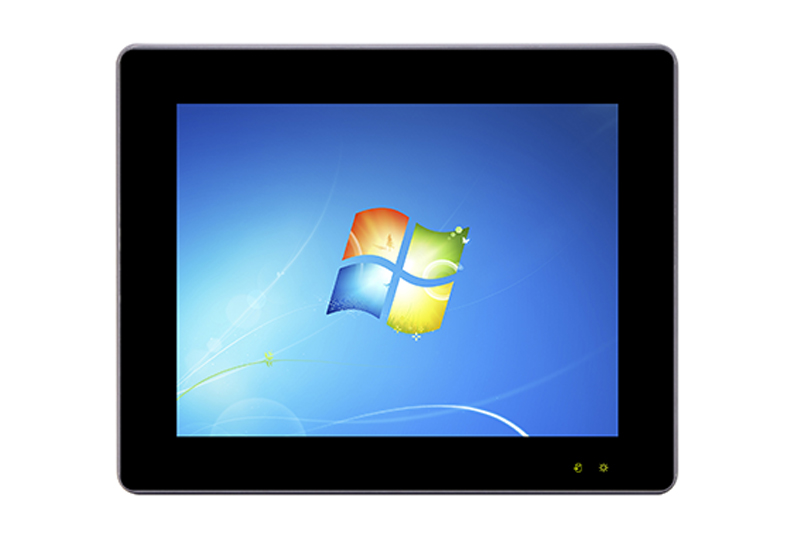

10.4 inch Desktop CPU Industrial Panel PC
1.Industrial-Grade Embedded Fan Design Panel PC
2.10.4 inch LED Screen, 1024*768 Resolution
3.Capacitive and Resistive Touch Screen
4.Intel Celeron and Core 6/7/8/9th-i3 / i5 / i7/i9 Desktop CPU
5.2*LAN, 4*USB, 6*COM, 1*HDMI
6.1*Expansion Card slot
7.1*Mini PCIE Expansion Slot, Support 4G and WIFI Module
8.-30℃~70℃ Temperature Can Keep 24/7 Work Stably
9.DC 9-36V Power Input with Overvoltage Protection
10.Anti-Static, Anti-Pulse, Anti-Surge, Anti-Radiation
2.10.4 inch LED Screen, 1024*768 Resolution
3.Capacitive and Resistive Touch Screen
4.Intel Celeron and Core 6/7/8/9th-i3 / i5 / i7/i9 Desktop CPU
5.2*LAN, 4*USB, 6*COM, 1*HDMI
6.1*Expansion Card slot
7.1*Mini PCIE Expansion Slot, Support 4G and WIFI Module
8.-30℃~70℃ Temperature Can Keep 24/7 Work Stably
9.DC 9-36V Power Input with Overvoltage Protection
10.Anti-Static, Anti-Pulse, Anti-Surge, Anti-Radiation
Features:
Screen Size
10.4 inch LED screen
Resolution:1024*768
Touch Type
Capacitive or Resistive
Chipset
B365
CPU
Intel Celeron and Core i3/i5/i7/i9-6/7/8/9th Desktop CPU
I/O Interfaces
2*RJ-45,4*USB 3.0,6*COM
1*HDMI
Expansion Slot
1*Mini PCIE slot for 4G and Wi-Fi
1*Expansion Card slot
Fan Design
Fan Design, Aluminum Alloy Material
Operating temperature
-30℃~70℃, Support 24/7 Working
Specification:
| Model | QY-P8104-DC |
| Chipset | B365 |
| CPU | Celeron 6 / 7 / 8 / 9th-i3 / i5 / i7 / i9 Desktop CPU |
| Memory[1] | 2*DDR IIII RAM Slots, Up to 64GB |
| Storage | 1*M.2 NVME SSD Slot |
| Display[2] | 1*HDMI: Resolution up to 4096*2106@24Hz |
| Expansion | 1*Mini PCIE Slot, Support 4G and WIFI module |
| Ethernet | 2*Intel i210v LAN Chip (10 / 100 / 1000 Mbps, RJ-45 Type) |
| USB | 4*USB 3.0 (Type-A) |
| COM | 2*RS-232 / 422 / 485 (DB9 type) 4*RS-232 (DB9 ype) |
| Audio | 1*Line-Out |
| Daughter Card | Support expansion more I/O interfaces and functional slots |
[1]: The maximum memory capacity and the maximum capacity per strip supported by this motherboard depend on the CPU.
[2]: The maximum resolution and frame rate of the display interface output depends on the CPU.
2.Screen Specification:
| Screen Size | 10.4 inch TFT LED Screen, 4:3 Size | |
| Resolution | 1024*768 | |
| Brightness | 350nits | |
| Support optional 500 / 800 / 1000 nits | ||
| Contrast | 800:1 | |
| Largest Colorful | 16M | |
| Touch Screen Type | Capacitive | Resistive |
| Transmittance | More than 95% | More than 95% |
| Touch Life | 50 million times | 35 million time |
| Response Time | ＜5ms | ＜5ms |
| Touch Hardness | 7 Mohs | |
| Protection | Front Panel IP65 Water Proof | |
| Camera | Support optional camera (Built-in, 200w or 500w) | |
3.Device Specification:
| Power Input | DC 9-36V with overvoltage protection |
| Support Auto-Start | |
| 2 Pin Phoenix Terminal type DC Plug | |
| Working Temperature | -30℃~70℃, Support 24/7 Working |
| Structure | Fully Enclosed Aluminum Alloy Material |
| Heat Dissipation | Fan Design |
| Installation | Desktop / Embedded / Wall Mount |
| Size | 271.46mm*217.96mm*67mm |
| System | Windows and Linux |
4.Expansion Card Specification:
| COM Port-2 | 2*RS-232 / 485 (DB9 type) |
| COM Port-6 | 4*RS-232 / 485+2*RS-232 (Phoenix terminal type) |
| Ethernet Port-2 | 2*Intel i211V LAN Chip (RJ-45 type) |
| Ethernet Port-4 | 4*Intel i211V LAN Chip, Support POE function (RJ-45 type) |
| USB Port-4 | 4*USB 3.0 (Type-A) |
| GPIO Port-14 | 14 ports GPIO, 7*GPI+7*GPO, 0-3.3V (Phoenix terminal type) |
| DIDO Port-16 | 16 ports DIDO, 8*DI+8*DO, 24V (Phoenix terminal type) Comes with 4*RS-485 COM ports (Phoenix terminal type) |
| Mini PCIE Slot-2 | 2*Mini PCIE slots, Support 4G and WIFI module |
| M.2 Slot-1 | 1*M.2 Key-B slot, Support 5G module |
| M.2 NVME SSD Slot-1 | 1*M.2 NVME SSD slot |
| SATA SSD Slot-1 | 1*SATA 3.0 SSD Slot, Support RAID 1 |
| CAN Port-2 | 2*CAN interfaces (Phoenix terminal type) |
| UPS battery | 1.2AH or 4.8AH |
